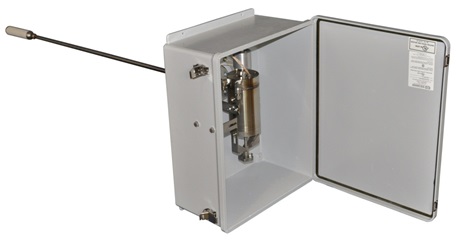

Heated Probe

HW5

Description Specification Brochure

Description

Unique design enables entire probe can be removed without pulling flange
With or without air operated isolation valve
Probe heater can be replaced at low cost
Easy filter cartridge change out
Compact design, fast response time
Heater temperature control, local or remote
All wetted parts 316SS, exotic alloys on request
Lowest cost, highest reliability

Technical Specification

Probe tube : Stainless steel (1 m – heated or unheated)
Sample temperature : Maximum 1100 °F (600 °C )
Sample pressure : 6 to 29 psia (0.4 to 2 bar abs )
Ambient temperature : -20 °F to 140 °F (-30 °C to +60 °C)
Filter porosity : 2 micron standard (others on request)
Filter volume : 24 in3 ( 400 ml )
Probe heating temperature : 392 °F (200 °C ) external temperature control
Heated sample fitting : 3/8” tube fitting
Power supply : 110 to 240V; 50 / 60 Hz
Power consumption : 600 VA
Electrical connection : Terminal support 12 AWG wire
Enclosure rating : NEMA 4x
Mounting flange : ANSI 4” 150 lb (68 kg)
Material for sample contact parts : SS 316; other materials upon request
Weight : 20 lb (9 kg )
Options Relay contact output : Air operated isolation valve
